Lithium CFx Micro-Battery Series
Lithium CFx Micro-Battery Series
- Phone: +86 13717886917
- Email: kingox@sina.com
- SUPPORT
u Sized at 3mm by 6mm, with capacity of 535Wh/L
u 10 years and more life time with annual self discharge less than 1%.
u Continuous discharge at -30 degree and below.
Product Features

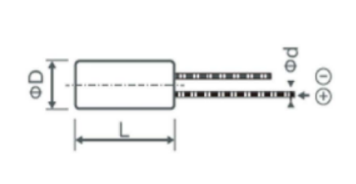

Size | <mm> |
ΦD | 3.0（Max） |
L | 6.3（±0.1） |
Φd+ | 0.2 |
Φd- | 0.3 |
Model | LADYBUG-306C |
Nominal Capacity (mAh) | 8 |
Voltage（V） | 2.5 |
Maximum Discharge(mA) | 1.0 |
Volume (mm3) | 45 |
Weight (g) | 0.08 |
Internal Resistance (Ω) | ≤100 |
Operating Temperature（℃） | -10~+60 |
Volumetric energy density (Wh/L) | 444 |
Weight energy density (Wh/kg) | 250 |
The above indicators are reference values for typical products of the company. If you need customization, please contact us.
