Non-Pin Type Capacitor Battery Series
Non-Pin Type Capacitor Battery Series
- Phone: +86 13717886917
- Email: kingox@sina.com
- SUPPORT
u Upgraded interface made disassemble and installation easier, allowing continuously discharging from 5C to 10C with burstable discharge at 15C
Product Features
Size | <mm> |
Battery Length (L) | 34（Max） |
Diameter1（Φ1） | 13（Max） |

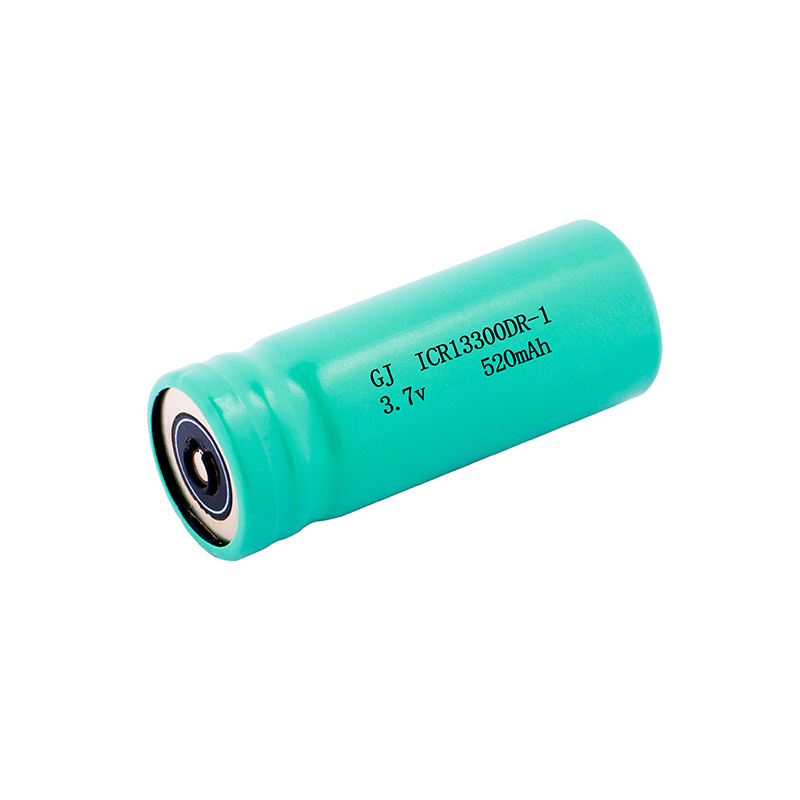

Parameter | ICR13300DR-1 |
Nominal Capacity (mAh) | 520 |
Maximum Charging Voltage（V） | 4.35 |
Nominal Voltage (V) | 3.7 |
Internal Resistance (mΩ) | ≤100 |
Standard Charging Current | 0.2C5CC/CV→0.02C cutoff |
Standard Discharge Current | 0.5C5CC→3.0V cutoff |
Fast Charging Current | 0.5C5CC/CV→0.02C cutoff |
Fast Discharge Current | 3A→3.0V cutoff |
Operating Temperature（℃） | Charge：0~+45 Discharge: -10~+60 |
Storage Temperature（℃） | Within 1 month -10~+45；Within 6 months 0~+35 |
The above indicators are reference values for typical products of the company. If you need customization, please contact us.
