u Discharge Capacity of our 3A batteries is 40% higher than all other counter parties in e-cigarette industry, with a stabilized discharge voltage of 3.7V to achieve the best atomization taste.
Product Features

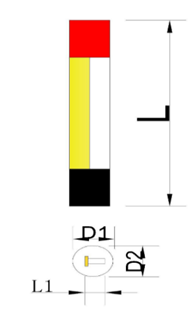

Size | <mm> |
Battery Length（L1） | 30（Max） |
Diameter1（D1） | 13（Max） |
Diameter2（D2） | 13（Max） |
Pole Lug Length（L1） | 8±1 |

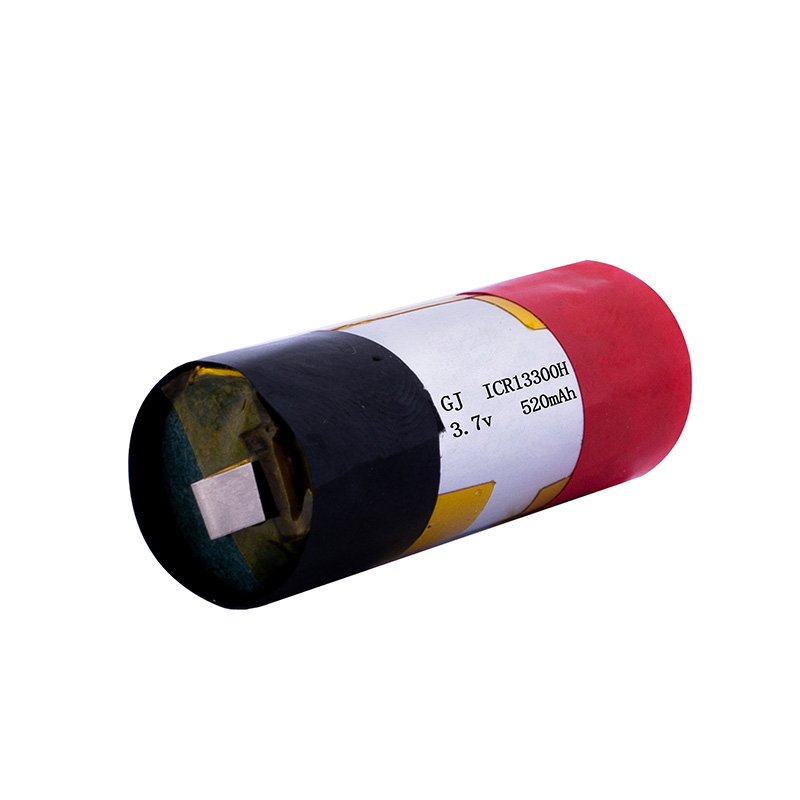

Parameter | ICR13300H |
Nominal Capacity (mAh) | 560 |
Maximum Charging Voltage（V） | 4.35 |
Nominal Voltage(V) | 3.7 |
Internal Resistance(mΩ) | ≤100 |
Standard Charging Current | 0.2C5CC/CV→0.02C cutoff |
Standard Discharge Current | 0.5C5CC→3.0V cutoff |
Fast Charging Current | 0.5C5CC/CV→0.02C cutoff |
Fast Discharge Current | 3A→3.0V cutoff |
Operating Temperature（℃） | Charge：0~+45 Discharge：-10~+60 |
Storage Temperature（℃） | Within 1 month -10~+45； Within 6 months 0~+35 |
The above indicators are reference values for typical products of the company. If you need customization, please contact us.
