u High current and voltage charging function to minimize the charging time with extendibility and recyclable feature

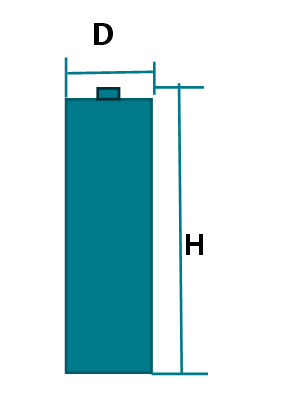

Size | <mm> |
Battery Diameter(D) | 14.5(Max) |
Battery height(H) | 50.5(Max) |
Parameter | ICR14500H |
Nominal Energy (mWh) | 4800 |
Maximum Charging Voltage(V) | 4.35 |
Nominal Voltage(V) | 1.5 |
Internal Resistance(Ω) | ≤10 |
Standard Charging Current | 0.2C5CC/CV→0.02C cutoff |
Standard Discharge Current | 0.2C5CC→1.0V cutoff |
Fast Charging Current | 0.5C5CC/CV→0.02C cutoff |
Fast Discharge Current | 0.5C5CC→1.0V cutoff |
Operating Temperature(℃) | Charge:0~+45 Discharge:-10~+60 |
Storage Temperature(℃) | Within 1 month -10~+45; Within 6 months 0~+35 |
The above indicators are reference values for typical products of the company. If you need customization, please contact us.
